Molding and foaming mould

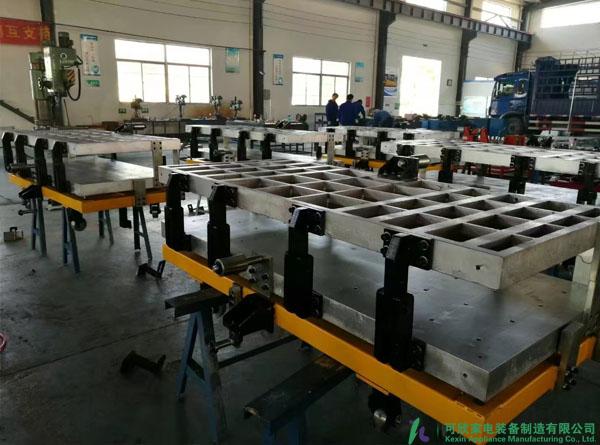

  • Ground rail refrigerator&freezer door body foaming fixture
Ground rail refrigerator&freezer door body foaming fixture

Ground rail refrigerator&freezer door body foaming fixture

  • Product description: Ground rail refrigerator&freezer door body foaming fixture
  • INQUIRY


Working environment: temperature 00C~450C，relative humidity is not more than 90%.

Cylinder working pressure（bleed pressure） of core-pulling mechanism:0.5MPa~0.7MPa

Electric heating system: Voltage 220V or 380V,frequency 50Hz

Water cycle heating system:water temperature 500C~700C,pressure ≥0.05MPa

Mold working temperature:400C~600C

Air holes:diameter is φ3mm~φ4mm, the number is 4 ~6.

Surface roughness requirements for mold forming:Ra≤1.6mm

Mold material:Cast aluminium alloy ZL105,LY12

The mold wall thickness:≥15mm

Gap between mold and product ≥0.5mm
